Deep-sea anglers spend substantial sums on high-end electric fishing reel batteries to gain a competitive edge. Lithium-ion batteries have revolutionized offshore sportfishing by delivering high energy density and flat discharge curves in lightweight packages.
However, the marine environment is arguably the most hostile operating arena for advanced electronics. The combination of high relative humidity (often exceeding 80%), corrosive saltwater spray, and rapid temperature shifts creates a perfect storm for premature battery degradation.
Understanding the electrochemical and physical stressors on your lithium-ion pack is essential. In this technical guide, we analyze the mechanics of marine battery wear and outline a scientifically backed maintenance routine to maximize your battery’s charging cycles.
1. The Saltwater Threat: Contact Resistance and Galvanic Corrosion
Saltwater is an exceptionally efficient electrolyte. When microscopic saltwater droplets settle on exposed battery terminals, they initiate galvanic corrosion.
The Mechanics of Contact Resistance
When saltwater contacts the output terminals of your battery, it reacts with the gold-plated or nickel-plated copper pins. Over time, this chemical reaction forms a micro-layer of non-conductive copper oxide and metal chlorides.
- The Consequences: This oxide layer drastically increases contact resistance at the connection joint.
- The Damage: When your electric reel draws 15A of current during a heavy retrieval, this high contact resistance converts electrical energy into intense localized heat. This thermal spike can melt the connector housing, damage the internal seals, and lead to water ingress, destroying the battery’s internal management circuitry (BMS).
2. Temperature and State of Charge (SoC): The Hidden Aging Drivers
Aside from physical corrosion, two silent variables dictate the lifespan of a lithium-ion battery: ambient temperature and State of Charge (SoC) during storage.
The Thermal Decay Curve
Lithium cells (such as the premium 21700 cells used in RANON® batteries) degrade faster when exposed to high heat. Operating or storing a fully charged battery in temperatures above 45°C (113°F)—such as inside a hot boat cabin or under direct midday sun—accelerates the permanent loss of active lithium ions. This irreversible process is known as capacity fade.
The Stagnant Charge Trap
Keeping a lithium-ion battery stored at 100% SoC (fully charged to 16.8V) for extended periods of inactivity is highly damaging:
- The Physics: A fully charged cell operates at high electrochemical potential (tension). This continuous high voltage stresses the internal cathode-electrolyte interface, accelerating the degradation of the electrolyte and causing the cell to slowly lose its capacity.
- The Storage Sweet Spot: To maximize cycle life, never store your batteries fully charged or completely depleted during the off-season. Keep them stored at 50% to 60% SoC (around 14.8V nominal, or 3.8V to 3.85V per cell), which minimizes chemical stress inside the cell.
3. Comparative Matrix: Best Operating Standards vs. Destructive Habits
To extend the lifespan of your marine lithium battery pack, adhere to the following strict technical operating procedures:
| Operational Parameter | Maximum Lifespan Practice (1,000+ Cycles) | Destructive Practice (<200 Cycles) |
|---|---|---|
| Storage Voltage | 50% to 60% SoC (approx. 14.8V) | Stored at 100% (fully charged) or 0% (fully empty) |
| Storage Temperature | Cool, dry environment (15°C to 25°C / 59°F to 77°F) | Inside hot boat cabins, direct sunlight, or freezing sheds |
| Post-Fishing Care | Wiped with fresh damp cloth, dried, terminals greased | Left in the damp saltwater bag with residue on terminals |
| Charging Timing | Allowed to cool down for 30 minutes after use | Plugged into charger immediately while cells are still hot |
| Water Protection | Enclosed in IP54 or higher waterproof housing | Left exposed on wet deck areas without protective cases |

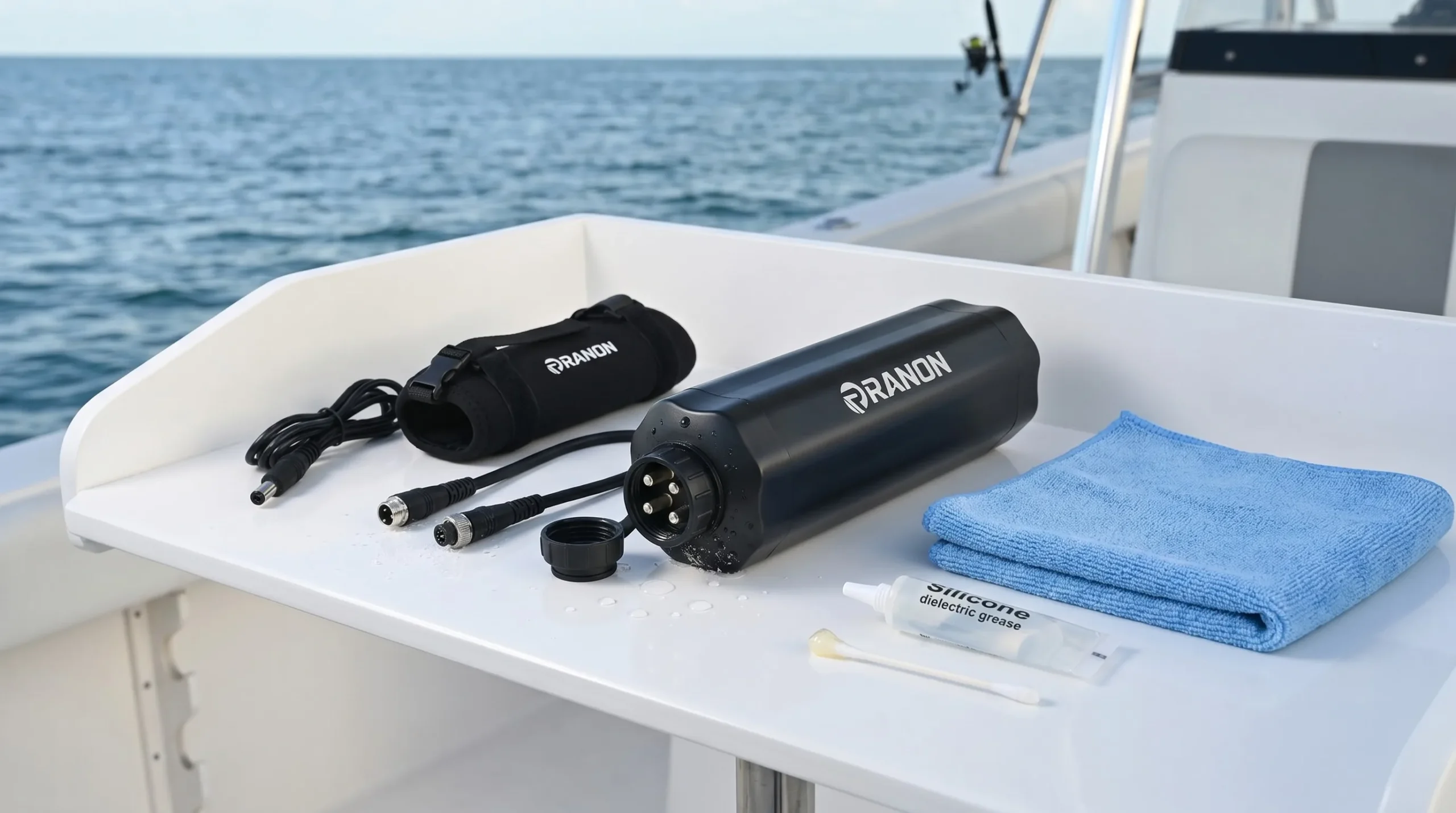

4. Step-by-Step Maintenance Protocol: Post-Fishing Care
To protect your RANON® battery’s contacts and preserve its internal chemistry, follow this 4-step maintenance routine after every offshore trip:
- Disconnect and Isolate: Immediately unplug the power cable from the battery output connector after fishing. Leaving the cable connected can slow-drain the battery and allow moisture to bridge the contacts.
- Freshwater Wipe: Use a clean microfiber cloth lightly dampened with fresh water to wipe down the outer protective casing. This removes dried salt crusts. Never submerge the battery.
- Dry and Clean Terminals: Dry the gold-plated connector pins completely with a dry cloth or compressed air. Inspect the contacts for any greenish copper oxide buildup.
- Apply Dielectric Grease: Apply a thin layer of silicone dielectric grease to the connector contacts. This specialized grease acts as a hydrophobic barrier, blocking saltwater and moisture from touching the metal pins while maintaining excellent electrical conductivity when the cable is plugged in.
5. FAQ: Maximizing Marine Lithium Battery Lifespan
Q: How many charging cycles should a quality marine lithium battery last?
A: A high-quality electric fishing reel battery built with premium, traceable 21700 cells and protected by a robust BMS should deliver 1,000+ full charge-discharge cycles before its capacity drops to 80% of its original rating. Proper storage and terminal care are essential to reaching this standard.
Q: Why shouldn’t I charge my battery immediately after fishing?
A: Heavy retrieval draws high current, which naturally warms up the internal lithium cells. Charging a warm battery immediately introduces additional chemical heat, which can exceed safe cell limits and accelerate thermal degradation. Allow the battery to rest and cool down for 30 minutes before plugging it into the charger.
Q: What is the correct way to store my electric reel battery for winter?
A: Clean the battery terminals, apply dielectric grease, and discharge or charge the unit to 50%-60% capacity (around 14.8V nominal). Place it in a cool, dry room between 15°C and 25°C. Check and recharge the battery back to 50%-60% once every 3 to 4 months to compensate for self-discharge.
The RANON® Quality Commitment
At RANON®, we understand that offshore equipment must be designed to withstand severe environments. Our high-performance marine lithium batteries are built with premium, QR-traceable 21700 cells, highly responsive Battery Management Systems (BMS), and rugged IP54-rated waterproof housings.
We provide global distributors, tackle brands, and OEM buyers with patented, thoroughly tested marine power solutions designed to maximize runtime, safety, and cycle-life efficiency.
Contact us today to receive our latest product specifications, factory testing data, or to discuss custom private-label solutions for your territory.
